ECOCON LIGHTWEIGHT CELLULAR CONCRETE SCREED

Works where weight is an issue.

ECOCON lightweight cellular concrete screed

ECOCON lightweight screed is a perfect solution for places where height of screed should be more than 10 cm and where there are certain limitations towards the weight of materials applied on top of the concrete slab.



ADVANTAGES

Reasonable Price

Light Weight

(500 kg/m3)

Natural

(Non-organic)

Materials

Fire-rated,

non-combustible

Power-saving



TECHNICAL SPECIFICATIONS

ECOCON Lightweight cellular concrete structure

Tile

ECOCON Tile Adhesive

ECOCON Primer

ECOCON Lightweight Cellular Concrete

(75 - 300 mm)

Minimum height, mm ..................75

Density, kg/m3 ................500 - 1,000

Reduced strength, MPa .........15 - 50

Sound damping, dB ................35 - 52

Finishing .........Tile, Marble, Carpet



METHOD

1

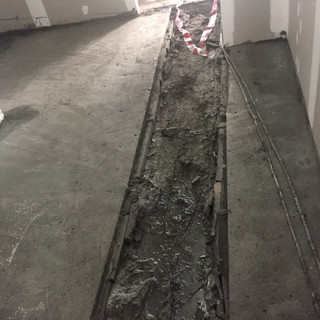

Surface preparation and installation of levels.

Preparation of surface for ECOCON lightweight concrete screed

2

Preparation and mixing of ECOCON DRY MIX.

ECOCON mixer for preparation of lightweight concrete screed

3

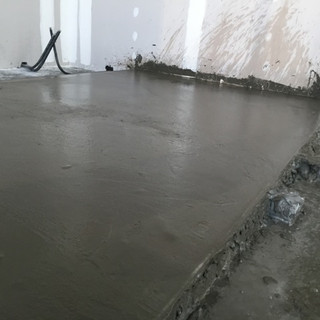

Laying down the screed, initial levelling.

Application of ECOCON lightweight concrete screed to floor for screed arrangement

4

Aeration process, final levelling.

Levelling of ECOCON lightweight cellular concrete screed

5

Water curing, expansion joints arrangement.

Expansion joints at ECOCON lightweight cellular concrete screed


GALLERY
